Sugar Cane Loaders, Haulers & Planters

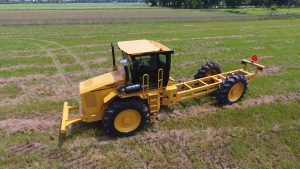

4700LX SUGAR CANE LOADER

 4700

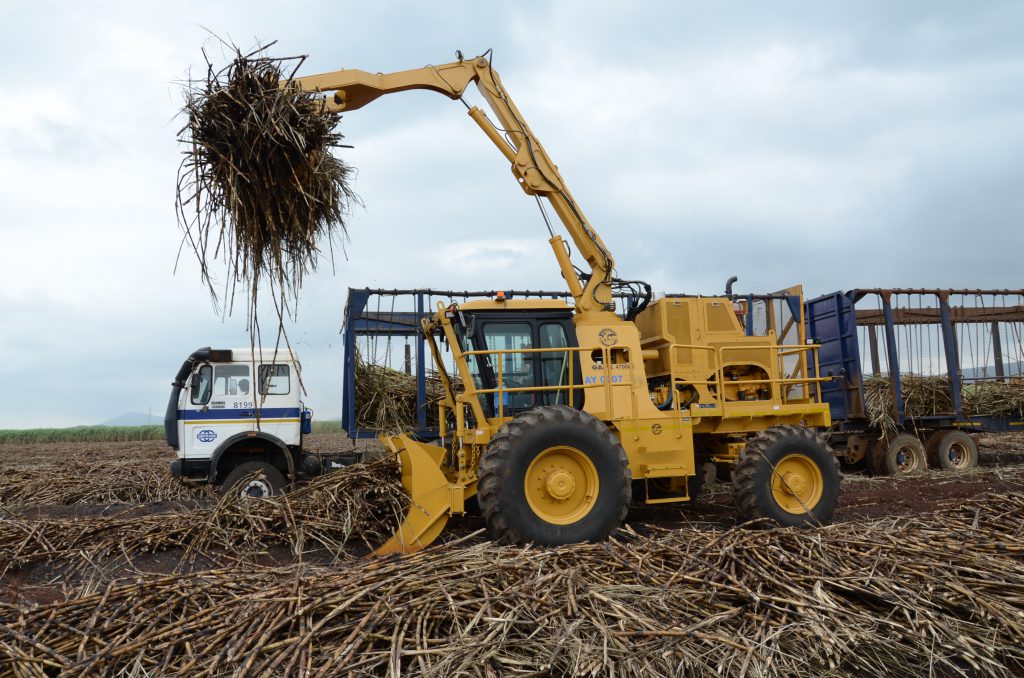

Kruger 065

ENGINE

  • Standard: John Deere 6068T 185HP (138 KW) @ 2,400 RPM, 484 FTLB (656 NM) @ 1,400 RPM
  • Mechanical fuel injection system
  • Severe dust, dry dual stage air cleaner with service indicator and pre-cleaner
  • Fuel/water separator with secondary fuel filter
  • Large tropical radiator and oil coolers mounted on rubber isolators, 8 fins/inch spacing and swing out ease cleaning
  • Reversing cooling fan to clean coolers and screens
  • 135-gal (510-liter) steel fuel tank with lockable cap and 12-inch clean our door
  • Deck with handrails around entire engine, pumps, filters, coolers, and service area
  • Optional: John Deere 6068 HF 225HP (168 KW) @ 2,400 RPM, 619 FT-LB (839 NM) @ 1,400 RPM, Mechanical engine with inline fuel pump.
  • Cummins QSB6.7, US EPA Tier 3, EU Stage III 220 HP (164 KW) @ 2,200 RPM and 700 FT-LB (949 NM) @ 1,500 RPM

GROUND DRIVE

  • Two heavy duty variable displacement hydrostatic pumps and (4) two speed heavy duty hydrostatic motors for wheel drives
  • Rigid front and rear oscillating steering axle with heavy duty planetary final drives
  • Spring applied hydraulic release parking brakes
  • Infinitely variable operating speeds in forward and reverse
  • All four wheels are powered full time
  • Low speed range = 0 to 8.7 MPH/ 0 to 14 KPH
  • High speed range = 0 to 18.6 MPH/ 0 to 30 KPH
  • Independent 38-gallon tank and cooler isolates the ground drive pumps and motors from hydraulic system contamination

TIRES

  • Standard: 24.5X32, R1, 12 ply front and 18.4X26, R1, 12 ply rear optional in R2
  • Optional: 30.5X32, R1 or R2, 14 ply front and 23.1X26, R1 or R2, 12 ply rear
  • Standard: 3.0 meter track spacing
  • Optional: Axle spacers move tracks to 3.3, 3.5 or 3.6 meters and can be ordered with new units or added to any existing unit in the field.

CANE HANDLING

  • Oversized, standardized, pins and bushings at cylinder and pivot points.
  • 180-degree boom swing right and left, cushioned at both extremes
  • Front mounted piler bar with 2.5 in (63.50mm) adjustable mounting positions for tines
  • Standard: Push piler
  • Optional: 10 chain piler

HYDRAULIC SYSTEM

  • Closed center, pressure compensate, piston pump for steering, boom, and piler cylinder fuctions
  • Priority hydraulic power steering
  • Pressurized hydraulic tank 68-gal (257-liters)
  • 100% filtration and 12-inch clean out door

ELECTRICAL

  • (2) 12-VDC, 925 CCA batteries
  • 12-Volt DC, 160-AMP alternator
  • Four LED headlights
  • Two LED work lights in the rear, two per side, and one on boom
  • One service deck light
  • Strobe light
  • Turn signal and warning lights front and rear mounted on extendable arms

OPERATOR’S STATION

  • AC cab with AM/FM stereo
  • Fully adjustable suspension seat with armrests
  • Adjustable tilt steering column
  • Joystick controls for boom and grab
  • Foot pedal control for ground drive
  • Windshield wipers (front and sides) and mirrors
  • Optional: Air suspension seat

77AHX 6×6 ARTICULATED HAULER 220 HP (164 KW)

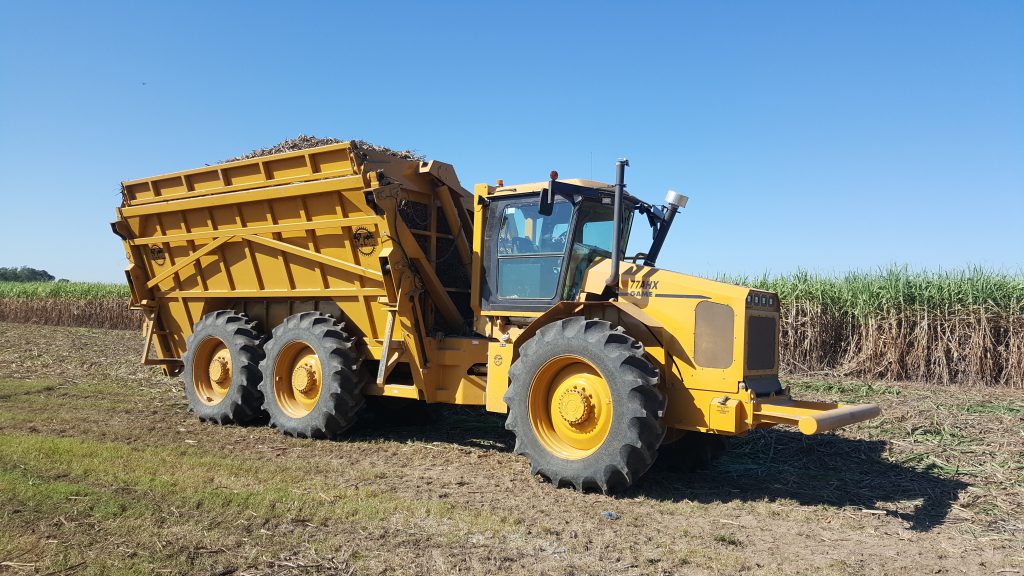

77ahx-2

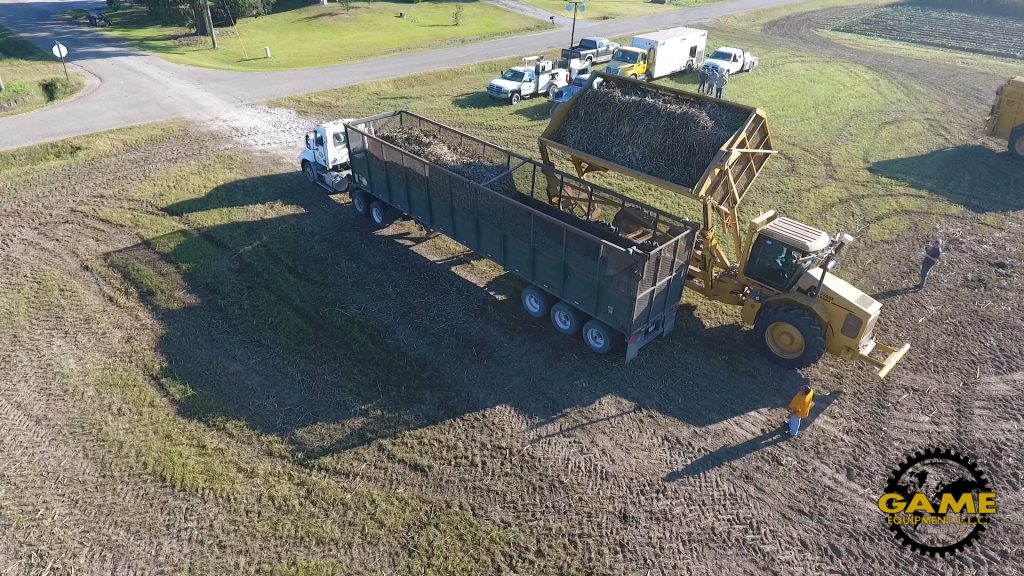

bin-dump-1

ENGINE

  • Cummins QSB 6.7 Tier III Electronic Engine
  • 220 HP (164 KW) @ 2,200 RPM, 700 FT-LB (949 NM) @ 1,500 RPM
  • Electronic fuel injection system
  • Severe dust, dry dual stage air cleaner with service indicator and pre-cleaner
  • Fuel/water separator with secondary fuel filter
  • Large tropical radiator, transmission, and hydraulic oil coolers are 8 fins/inch and rubber isolator mounted 80-gal (303 liter) steel fuel tank with lockable cap and 12-inch clean out door
  • Manual hydraulic tilting hood allows easy cleaning of coolers and service of engine and under hood parts
  • EXPORT ONLY OPTION: John Deere 6068 HF, 225 HP (168 KW) @ 2,400 RPM, 619 FT-LB (839 NM) @ 1,400 RPM mechanical engine

TRANSMISSION

  • Direct drive power shift transmission with bump shifter and inching pedal with 8 forward/3 reverse gears
  • Spring applied/Hydraulic release driveline parking brake
  • Separate cooler/system isolates transmission from hydraulic system contamination

AXLES

  • All wheels are powered
  • Heavy duty, planetary, dual reduction
  • Oscillating front axle, and tandem rear walking beam mounted axles
  • Internal oil bath service brakes
  • No spin rear tandem, front tandem open and limited slip front differentials

TIRES

  • (6) IF520/85 R42 R2
  • 76” centers, 97” outside to outside
  • 26” center ground clearance
  • Heavy duty one piece rims

CHASSIS

  • Heavy duty welded frame
  • Articulating joint with heavy duty radial spherical bearings and large hardened pins
  • Dual double acting heavy duty welded hydraulic steering cylinders with bushings
  • 15-ton Cane bin
  • Expanded metal front, rear, and bottom with reinforced I-beam frame
  • Solid dump wall with hydraulic actuated flap on top
  • Lift cylinders with quick change pins and bushings
  • Ground level grease zerks
  • Full belly pans and front pull hooks
  • Painted yellow gloss finish

STANDARD EQUIPMENT

  • Engine oil pressure monitoring and warning
  • Engine coolant temperature monitoring and warning
  • Voltage monitoring
  • Fuel gauge
  • Tachometer with hour meter
  • Low hydraulic oil level buzzer/indicator
  • Transmission oil temperature gauge and warning
  • Transmission pressure gauge and warning
  • Oil filter service warning buzzer/indicator
  • Hand and foot throttle

ELECTRICAL

  • (2) 12 VDC, 925 CCA batteries
  • 12 Volt DC,160 Amp alternator
  • Horn, reverse alarm, & master disconnect switch
  • Four adjustable LED headlights in hood
  • Two adjustable front and two rear/side LED work lights
  • Two adjustable LED work lights in rear
  • Brake and indicator lights mounted and protected in rear
  • Strobe light

OPERATOR’S STATION

  • Air conditioned with AM/FM stereo
  • Rear windshield wiper
  • Roll over bar
  • Manual hydraulic tilting platform for transmission and hydraulic component service
  • Leather, Heated and ventilated toggle link air suspension, 20 degree swivel fully adjustable seat with adjustable armrest

HYDRAULIC SYSTEM

  • Open center pump for brakes, steering, and implement valve
  • 49-gal pressurized hydraulic tank with 100% filtration and 12 inch clean out door
  • 4 bank implement valve
  • Accumulator for emergency braking
  • Dump valve on top side of lift cylinders with butt side plumbed to gauge for load estimate

4775LX  4X4 LOADER 260 HP (194 KW) @ 2,200 RPM

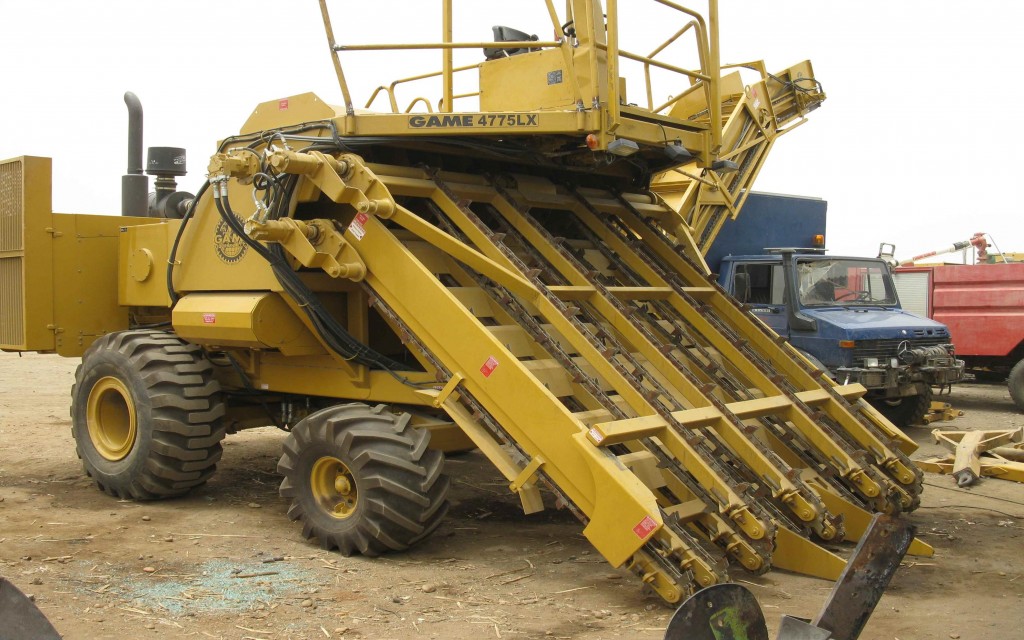

4775LX

ENGINE

  • Cummins 6CTS 8.3 Mechanical Engine 260 HP (194 KW) @ 2,200 RPM
  • Peak torque of 865 LB-FT (1,119 NM) torque at 1,500 RPM
  • In line 6-cylinder, four stroke
  • 496 cubic inch (8.1 liter) displacement
  • No charge air to air cooler required
  • Severe dust, dry, dual stage air cleaner with service indicator
  • Pre-cleaner with automatic dust ejector
  • 160-gallon fuel tank with lockable cap and 12-inch clean out door
  • Large tropical radiator, air to air, and hydraulic oil cooler
  • Fuel filter and water separator

TRANSMISSION

  • Heavy duty variable displacement hydrostatic pump and fixed displacement heavy duty motor
  • Infinitely variable operating speeds in forward and reverse
  • Charge pump filtration
  • Hydraulically operated brakes on each rear wheels
  • Heavy duty final drives

TIRES

  • (2) 21.5 X 16.1, 12 ply, I-3 front tires (2) 23.5 X 25, industrial rear tires mounted on three piece locking type industrial rims

DISCHARGE CONVEYOR

  • Hydraulically driven discharge conveyor
  • Rear wall of base loading conveyor behind knives/saw shaft is built of heavy plate to reduce damage and penetration when blade segments come off
  • Increased height to seal area above conveyor frame and top of loader frame to stop/reduce material blowing over the top of the conveyor and onto hydraulic tank and engine
  • Hinges and a latch to the base loading conveyor end cover on the right side/end of the loading conveyor to provide easy service access to the chain, sprockets, bearings, and slats

PICKUP CONVEYOR

  • Standard top and bottom chain conveyor
  • Bottom chain conveyor driven by two motors
  • Top chain conveyor driven by one motor
  • Front tire protection from loading conveyor outboard chain via plate with bent down ends to protect front tires from broken chain falling
  • Pickup conveyor lift and the pickup and hold down conveyor chain directional valves are directly linked to the operator control levers eliminating the control cables

SAW MECHANISM

  • Hydrostatic driven 9-blade saw (42″ diameter) on a high tensile steel tubular head shaft mounted on 2 heavy duty bearings which give any billet length required by the customer
  • Saw is driven by two heavy duty hydrostatic motors in closed loop with heavy duty variable displacement hydrostatic pump
  • Rear access door to service disc and blades

STANDARD EQUIPMENT

  • Engine oil monitoring and warning
  • Engine coolant monitoring and warning
  • Voltage monitoring
  • Fuel gauge
  • Tachometer with hour meter
  • Hand throttle
  • Low hydraulic oil level light

ELECTRICAL

  • 12-Volt DC engine system
  • 12-Volt DC, roadway, and warning lights
  • (2) 12-VDC, 925 CCA batteries
  • 160-Ampere alternator
  • Master Disconnect
  • Four adjustable headlights
  • Two adjustable back-up lights
  • Turn and warning/hazard lights

OPERATOR’S STATION

  • Open cab
  • Vinyl cushion mechanical suspension seat with position adjustment and armrest
  • Optional: Air conditioned cab with AM/FM stereo.
  • Air suspension seat

HYDRAULIC SYSTEM

  • Open center for brakes, steering, conveyor, saw, table and cylinder functions
  • 100% filtration
  • Front wheel power steering
  • 70-gal pressurized hydraulic tank with 100% filtration via full flow spin-on canister tyoe filters (70 gal capacity/60 gals oil) and 12 inch clean out door

MISC OPTIONS

  • Fire extinguisher
  • 2,000 hour filter package
  • 2,000 hour spare parts package



7425PX Sugar Cane Planter 300 HP (224 KW)

7425PX

ENGINE

  • Cat C-9 engine 300 HP @2,200 RPM
  • In-line 6 cylinder 537 CID
  • Electronic control and hydraulically actuated fuel system
  • Severe dust, dry, dual stage air cleaner with pre-cleaner
  • 160-gallon fuel tank with 12 inch clean out door
  • Large tropical radiator, air to air, and hydraulic oil coolers

HYDROSTATIC DRIVE

  • Hand hydrostatic control
  • Dual heavy-duty, bi-directional, hydrostatic, variable displacement, axial piston pumps
  • Dual heavy-duty, hydrostatic, two speed motors
  • Charge pump filtration
  • Separate hydraulic oil tank and cooler isolates the sensitive and expensive hydrostatic components from the hydraulic system

TRACK SYSTEM

  • 60,000-pound operational weight rating
  • Double grousser shoes
  • Planetary final drives
  • Spring applied hydraulic release parking brakes
  • Dynamic braking supplies by hydrostatic pump and motor

HYDRAULIC SYSTEM

  • Open center
  • Vane type pump for brakes, steering, and cylinder controls
  • Electric over hydraulic proportional controls for all conveyors
  • 65-gallon hydraulic tank with 100% filtration and seperate oil cooler and 12 inch clean out door
  • 45-gallon hydrostatic tank with 100% filtration and separate oil cooler and 12 inch clean out door

PLANTING

  • Dual 2.50 ton bins
  • Dual distribution conveyors independently controlled
  • Dual tool bars independent control and float position
  • Plow and drop box on each tool bar with covering disc at 1.5 to 1.8 meter centers on single rows or 9 foot (2.74 meter) centers with 3 foot (.91 meter) centers on dual line planted rows. Other dual line planting spacing’s available upon request
  • Two monitors for driver and two for rear operator with four cameras

STANDARD EQUIPMENT

  • Engine oil monitoring and warning
  • Engine coolant monitoring and warning
  • Voltage monitoring
  • Fuel gauge and system monitoring
  • Tachometer with hour meter
  • Low hydraulic oil level buzzer/light for hydraulic and hydrostatic tanks

ELECTRICAL

  • 12-Volt DC engine system
  • 12-Volt DC roadway, rear backing, and warning lights
  • (2) 12-VDC, 925 CCA batteries
  • 160 Ampere alternator

OPERATOR’S STATION

  • Single cab in front and rear
  • Air-conditioned
  • AM/FM stereo
  • Windshield wipers front and rear on front cab
  • Windshield wipers front, sides, and rear on rear cab
  • Rear view mirrors on front cab
  • Fully adjustable suspension seats
  • Optional: Air suspension seat

MISC OPTIONS

  • Electronic steering and mapping

4425PX Sugar Cane Planter 300 HP (224 KW)

4425PX

ENGINE

  • Cat C-9 engine 300 HP @2,200 RPM
  • In-line 6 cylinder 537 CID
  • Electronic control and hydraulically actuated fuel system
  • Severe dust, dry, dual stage air cleaner with pre-cleaner
  • 160-gallon fuel tank with 12 inch clean out door
  • Large tropical radiator, air to air, and hydraulic oil coolers

HYDROSTATIC DRIVE

  • Hand hydrostatic control
  • Dual heavy-duty, bi-directional, hydrostatic, variable displacement, axial piston pumps
  • Dual heavy-duty, hydrostatic, two speed motors
  • Charge pump filtration
  • Separate hydraulic oil tank and cooler isolates the sensitive and expensive hydrostatic components from the hydraulic system

AXLES

  • Heavy duty, outboard planetarty drive front and rear
  • Front drive steering and oscillating axle suspension
  • Rear drive steering and rigidly mounted
  • All four wheels are powered

TIRES

  • 23.1 X 26, LS-2, 16 ply, forestry tires front and rear

BRAKES

  • Spring applied/hydraulic release disc brake on driveline for parking and emergency
  • Hydraulic powered external disc service brakes in both axles
  • Dynamic service braking supplied by hydrostatic pump and motor

HYDRAULIC SYSTEM

  • Open center
  • Vane type pump for brakes, steering, and cylinder controls
  • Electric over hydraulic proportional controls for all conveyors
  • 65-gallon hydraulic tank with 100% filtration and seperate oil cooler and 12 inch clean out door
  • 45-gallon hydrostatic tank with 100% filtration and separate oil cooler and 12 inch clean out door

PLANTING

  • Dual 2.50 ton bins
  • Dual distribution conveyors independently controlled
  • Dual tool bars independent control and float position
  • Plow and drop box on each tool bar with covering disc at 1.5 to 1.8 meter centers on single rows or 9 foot (2.74 meter) centers with 3 foot (.91 meter) centers on dual line planted rows. Other dual line planting spacing’s available upon request
  • Two monitors for driver and two for rear operator with four cameras

STANDARD EQUIPMENT

  • Engine oil monitoring and warning
  • Engine coolant monitoring and warning
  • Voltage monitoring
  • Fuel gauge and system monitoring
  • Tachometer with hour meter
  • Hand throttle and hydrostatic controls
  • Low hydraulic oil level buzzer/light for hydraulic and hydrostatic tanks

ELECTICAL

  • 12-Volt DC engine system
  • 12-Volt DC roadway, rear backing, and warning lights
  • (2) 12-VDC, 925 CCA batteries
  • 160 Ampere alternator

OPERATOR’S STATION

  • Single cab in front and rear
  • Air-conditioned
  • AM/FM stereo
  • Windshield wipers front and rear on front cab
  • Windshield wipers front, sides, and rear on rear cab
  • Rear view mirrors on front cab
  • Fully adjustable suspension seats
  • Optional: Air suspension seat

MISC OPTIONS

  • Electronic steering and mapping
  • Fire extinguisher
  • 2,000 hour filter package
  • 2,000 hour spare parts package

GROUND SPEEDS

  • Gear        Speed Range
  • Low         0-4.2 MPH
  • Hi            0-13 MPH
